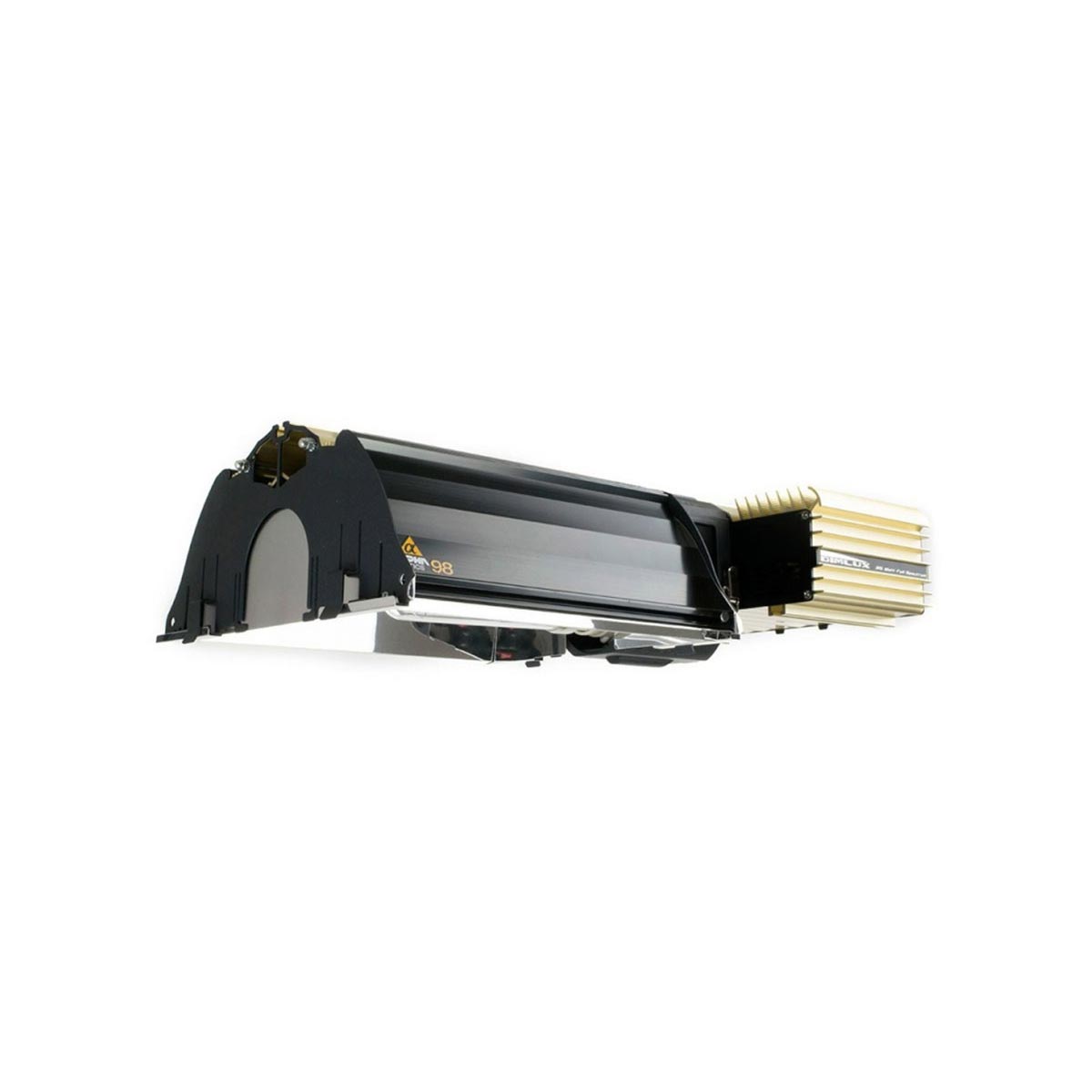

DimLux 315 Watt Ceramic Metal Halide (CMH)

You can purchase this item through Global Garden by calling 310-362-0550 or you can visit www.directgardensupply.com and purchase online.

The DimLux Expert Series 315W Full Spectrum is a complete 315W Full Spectrum fixture. The DimLux Expert Series 315W Full Spectrum is a complete fixture including the Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved.

Available in:

  • 120/240 Volt
  • 240 Volt
  • 277 Volt

Click Here to get your free custom DimLux Light Plan

UPC: N/A SKU: Select Option Category: Brand:
Clear

Description

The DimLux Expert Series 315W Full Spectrum is a complete 315W Full Spectrum fixture. The DimLux Expert Series 315W Full Spectrum is a complete fixture including the Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved.

Provided with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is replaceable.

Features

  • Philips CDM-TP 315w/930 – full spectrum lamp
  • A blinding intensity that’s clearly visible with the naked eye
  • Ideal as both supplementary and standalone lighting
  • Highly efficient – puts out 1.9 micromole (umol) per watt of electricity
  • Extremely high PAR levels
  • Full fixture – lamp, ballast, and reflector
  • Alpha 98 reflector with Single Bounce Clear Sight (SBCS) technology
  • Fully compatible with the DimLux Maxi Controller
  • Adjustable output levels from 165watt to 380w att
  • Benefits
  • Excels as both supplementary and standalone lighting
  • SBCS -Single Bounce reflector ensures minimal light loss
  • Brighter, cleaner light for maximum yield
  • Less Heat – reduced risk of heat damage to plants
  • Reduce cooling costs
  • No loss of vertical space – ideal for rooms with 8 ft ceilings
  • Available DimLux Maxi Controller (sold separately) for dimming to sunrise/sunset and when temperature, humidity, VPD and CO2 levels vary
  • Overall much greater output and yield than any other lighting system
  • The DimLux Expert Series 315-Watt Full Spectrum is a complete fixture containing the highest quality Alpha Optics reflector, ballast, and lamp. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro
  • Silver mirrors. The resulting effect is the highest possible efficiency (98%) of all available horticulture reflectors is achieved.

​MORE LIGHT LESS HEAT GREATEST CONTROL

This fixture comes with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector, the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is fully replaceable.

DIMLUX EXPERT SERIES 315WATT CMH Specifications

  • Components: 315WATT Full Spectrum Phillips Lamps; DimLux Xtreme 315WATT Ballast; Alpha Optics 98 Reflector
  • Dimming Steps: Soft-Off, 165WATT, 205WATT, 245WATT, 280WATT, 315WATT, 345WATT, 380WATT (boost)
  • System PPF at 1200W ATT: 706μmol
  • Lighting Surface at 1000WATT: min 0.42m² / max 1m²
  • Lighting Surface at 1200WATT: min 0.45m² / max 1.2m²
  • Socket for Active Extraction: ø 50mm
  • Measurements: 530 x 275 x 130mm
  • Weight: 4.9Kg

Additional information

Weight19.5 lbs
Dimensions30 × 12 × 8.75 in
Voltage

120/240 Volts, 240 Volts, 277 Volts
