Dimlux Xtreme Series LED Fixture – 750w, 120-277V


SKU: GG-600025 Category: Tag:

12 years ago, Dimlux introduced the first ever groundbreaking remote controlled HPS ballast in combination with the Maxi Controller; The Dimlux Expert Series. Today, Dimlux introduces the smartest, most efficient and most powerful grow light on the market – The Dimlux Xtreme Series 750w LED!

With this innovative LED fixture, Dimlux sets a benchmark for horticultural lighting. With patented technology, advances in LED technology, and optimal thermal design, the Dimlux Xtreme Series 750w LED will be the preferred option offering significant return on investment to cultivators. This adjustable PhytoVegSpec® grow spectrum combines full control over light quality (spectral turnability) and quantity (intensity/DLI) ensuring a uniform spread and even light distribution with extreme penetration into the canopy. The Dimlux Xtreme Series 750w LED produces ultra-high levels of PPFD, evenly spread over a 5×5 sq ft grow area, with a full spectrum producing consistently high quality & high yield indoor crops. The Dimlux Xtreme Series 750w LED can be dimmed without losing efficiency. The spectrum and output power can be programmed depending on the time of day and the growth stage of the crop. Auxiliary RGB LEDs with over 65k colors can be used as supplemental light and can be used as green work light in the dark phase. The green work light can automatically ​be ​switched on by the internal radar proximity sensor.


  • Light Source: LED

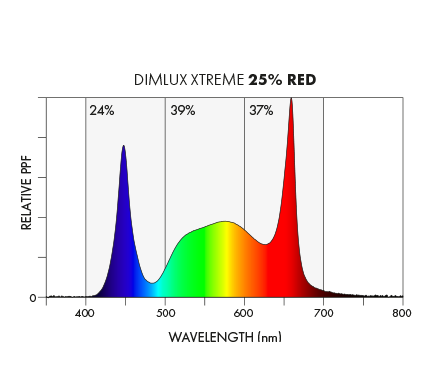

  • Spectrum Adjustable: PhytoVegSpec® Indoor

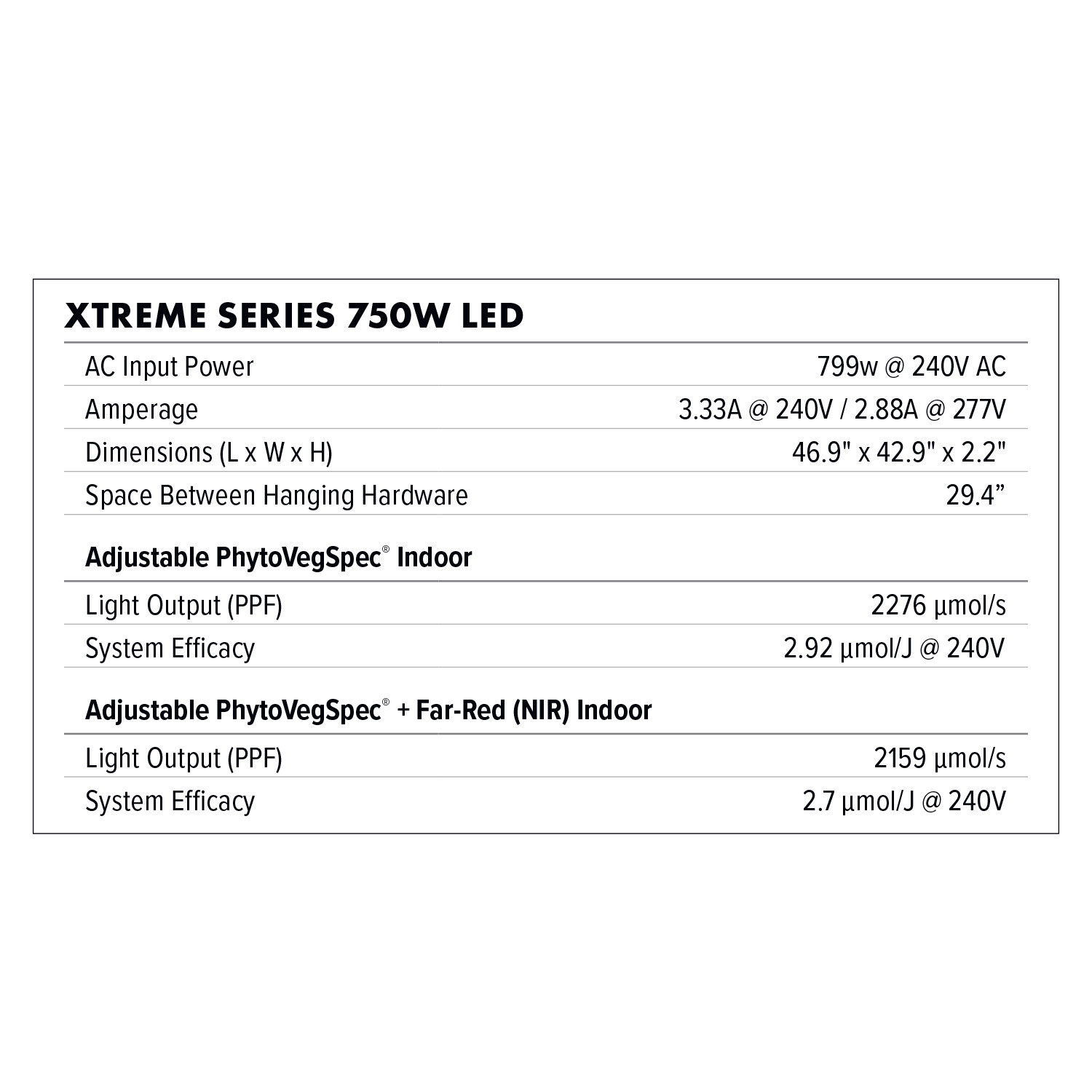

  • Light Output (PPF): 2276 μmol/s
  • System Efficacy: 2.85 μmol/J @ 240V AC
  • AC Input Power: 799w @ 240V AC
  • AC Input Voltage: 120-277V AC, 50/60Hz
  • Beam Angle: 90° × 120° 
  • Optics: Patented Deep Penetration Ultra High Transmittance Lens

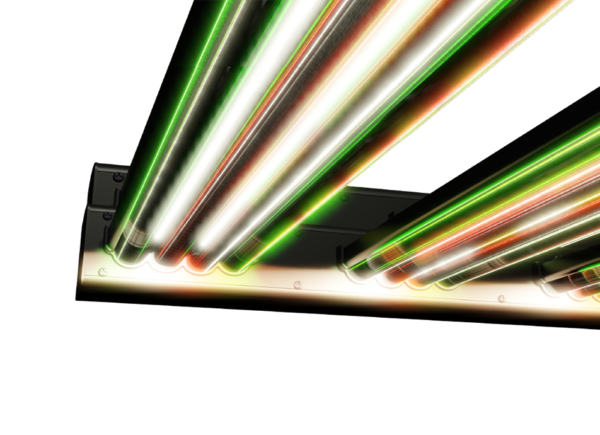

  • Auxilliary: Light Patented Light Pipe Multi Color 65k
  • Proximity sensor: Doppler Radar
  • Mounting: Height 30-65 cm Above Canopy
  • Thermal Management: Passive
  • Max. Ambient Temperature: 40°C / 105°F
  • Control By Maxi Controller or Internal Controller
  • Smartports: (3x) Interlink, Plant Temperature Sensor, Light Sensor
  • Display For Spectrum and GUI: 1.54″ 65k Color IPS
  • Total Harmonic Distortion: (THD) < 10%
  • Lifetime L90 (Q90): > 50,000h
  • Dimensions: (L x W x H) 46.9” x 42.9” x 2.2”
  • IP Rating: IP65
  • Certifications: CE, UL 8800, UL 1598 Wet Location, DLC
  • Warranty: 5 Year Standard
