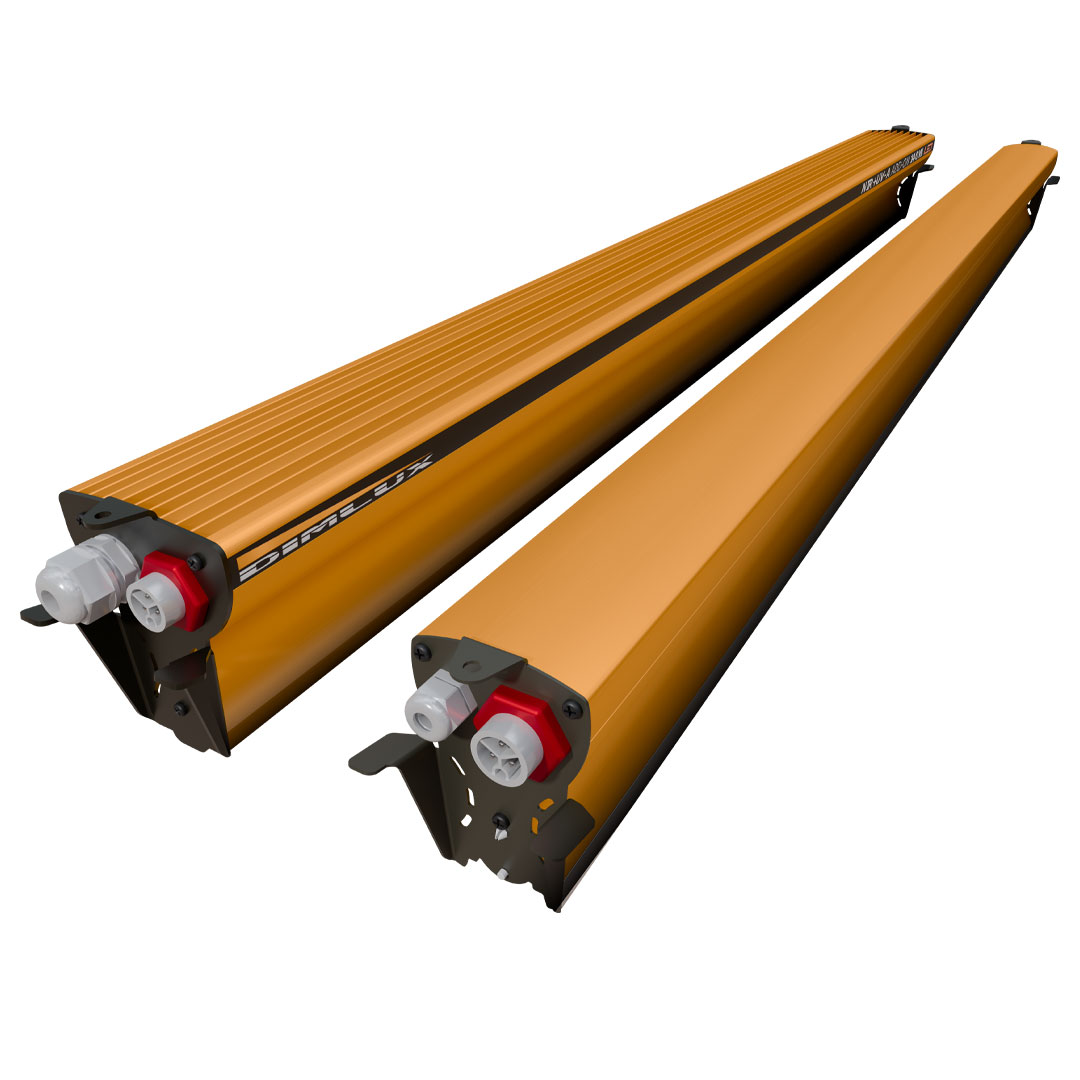

These add on bars should be used in conjunction with the Dimlux Xtreme Series LED fixtures. The 70W add-on bar is suitable for use with the 500W fixture and the 140W add-on bar is suitable for use with the 750W and 1000W fixtures.
Can be used to accelerate the flower setting on Dimlux LED fixtures. The add-on bars can also help boost photosynthesis (higher DLI). Increases resistance to fungi, and other pathogens. Increases resin production which brings out flavonoids and terpenes.
ADVANTAGE OF ADD-ONS
Independent control of the NIR and UV-A channels makes it possible to mix the right amount of grow/control light at any time in the grow cycle. UV-A can be gradually increased as the plant progresses through its growing phase. NIR can be added during the flowering phase, to be used as a photosynthesis booster along with red.
Also, by adding NIR photons at the beginning of the night, the Phytochrome far-red can be converted more quickly to its inactive form Phytochrome red. As a result, the plant will “fall asleep” faster, which increasing photosynthesis during the day and improves metabolism during the night.
GENERAL INFORMATION
Optics Patented Deep Penetration Ultra High Transmittance Lens
Auxiliary Light Patented Light Pipe Multi Color 65k
Thermal Management Passive
Operating Temperature 0-40°C / 32-107°F (non-condensing)
Total Harmonic Distortion (THD) < 10%
Lifetime L90 > 50,000h
IP Rating IP50
Certifications CE, UL 8800, UL 1598 Wet Location
Photobiological Safety IEC 62471 - Risk Group 2
CAUTION UV Emitted from these products
Warranty 3 Year Standard
SPECIFICATIONS - XTREME NIR+UV-A 70W
Light Source 70W LED Dual Band
FAR-RED (670-760nm) Photon Flux 123 μmol/s
UV-A (370-405nm) Photon Flux 31 μmol/s
Total Photon Efficacy (350-800nm) 2.91 μmol/J @ 230-240V AC
AC Input Power 72.5W @ 230V AC
AC Input Voltage 120-277V AC, 50/60Hz
AC Input Current 0.65A @120V / 0.27A @277V
Rec. Hanging Height 4' × 4' min. 2'
Rec. Hanging Height 40" × 40" min. 20"
SPECIFICATIONS - XTREME NIR+UV-A 140W
Light Source 140W LED Dual Band
FAR-RED (670-760nm) Photon Flux 247 μmol/s
UV-A (370-405nm) Photon Flux 62 μmol/s
Total Photon Efficacy (350-800nm) 2.95 μmol/J @ 230-240V AC
AC Input Power 156.1W @ 230V AC
AC Input Voltage 120-277V AC, 50/60Hz
AC Input Current 1.3A @120V / 0.56A @277V
Rec. Hanging Height 5' × 5' min. 2.5'
Rec. Hanging Height 4' × 4' min. 2'
